Types of Hydraulic Filters


Simplex

Simplex : Simplex Filters for Inline / Manifold Mounting

Inline Low Pressure :

Design : Inline mounting
✓ Type : 40_160 LE/LEN
✓ Pressure : 40 / 160 Bar
✓ Flow handling capacity : upto 450lpm
✓ Connection : Upto 1 - 1/2

Heavy Duty Inline:

Design: Inline mounting
✓ Application: Designed exclusively for heavy duty applications
✓ Type: 160 OFM20X
✓ Pressure: 160 Bar
✓ Flow handling capacity: upto 450lpm
✓ Connections : 1-1/2” BSP / SAE 1-1/2”

Inline Low Pressure
Easy Service:

Design : Inline mounting Easy service design
✓ Type : 40 FLE/FLEN
✓ Pressure : 40 Bar
✓ Flow handling capacity : upto 2700lpm
✓ Connection : Upto 4"

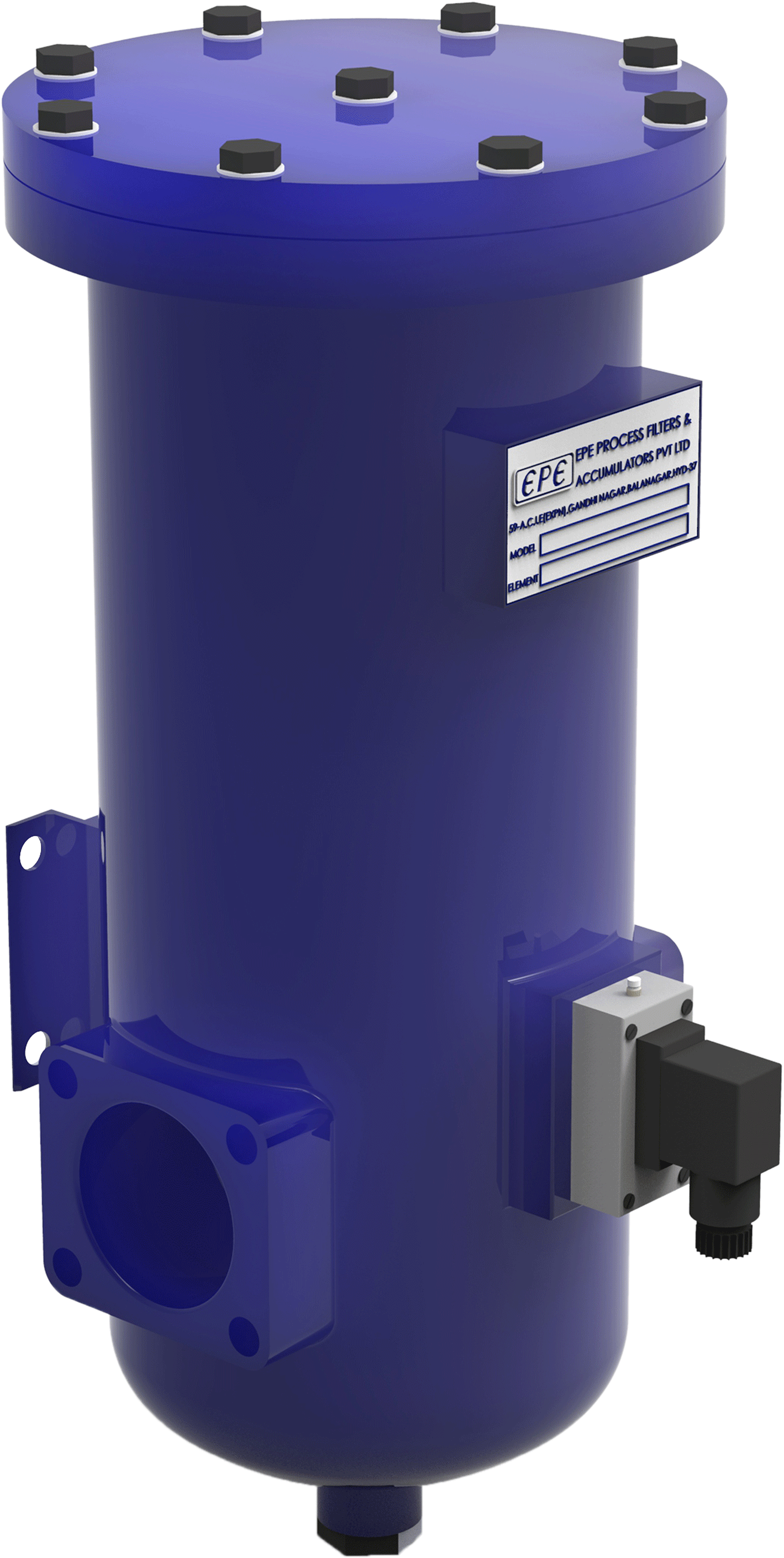

Inline Low
Pressure Fabricated:

Design : Inline mounting Fabricated
✓ Type : 10_25 L
✓ Pressure : 10 / 25 Bar
✓ Flow handling capacity : upto 2700lpm
✓ Connection : Upto DN100

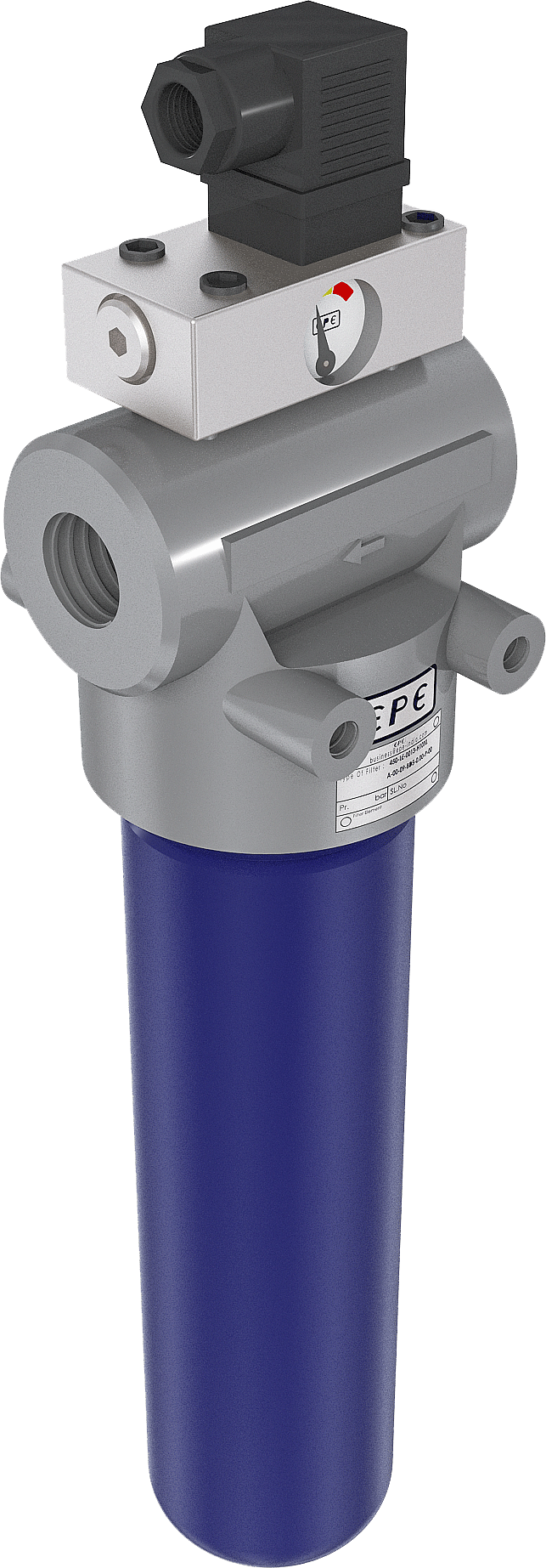

Inline High Pressure :

Design : Inline mounting
✓ Type : 250_450 LE/LEN
✓ Pressure : 250 / 450 Bar
✓ Flow handling capacity : upto 1450lpm
✓ Connection : Upto 2 - 1/2"

Manifold Mounted
High Pressure :

Design : Manifold mounting
✓ AType : 250_450 FE/FEN
✓ TPressure : 250 / 450 Bar
✓ Flow handling capacity : upto 1450lpm
✓ Connection : Upto DN50


Duplex

Duplex : Duplex Filters for interruption free operation

Low Pressure :

Design : Duplex Inline mounting
✓ Type : 40_160 LD/LDN
✓ Pressure : 40 / 160 Bar
✓ Flow handling capacity : upto 450lpm
✓ Connection : Upto 1 - 1/2"

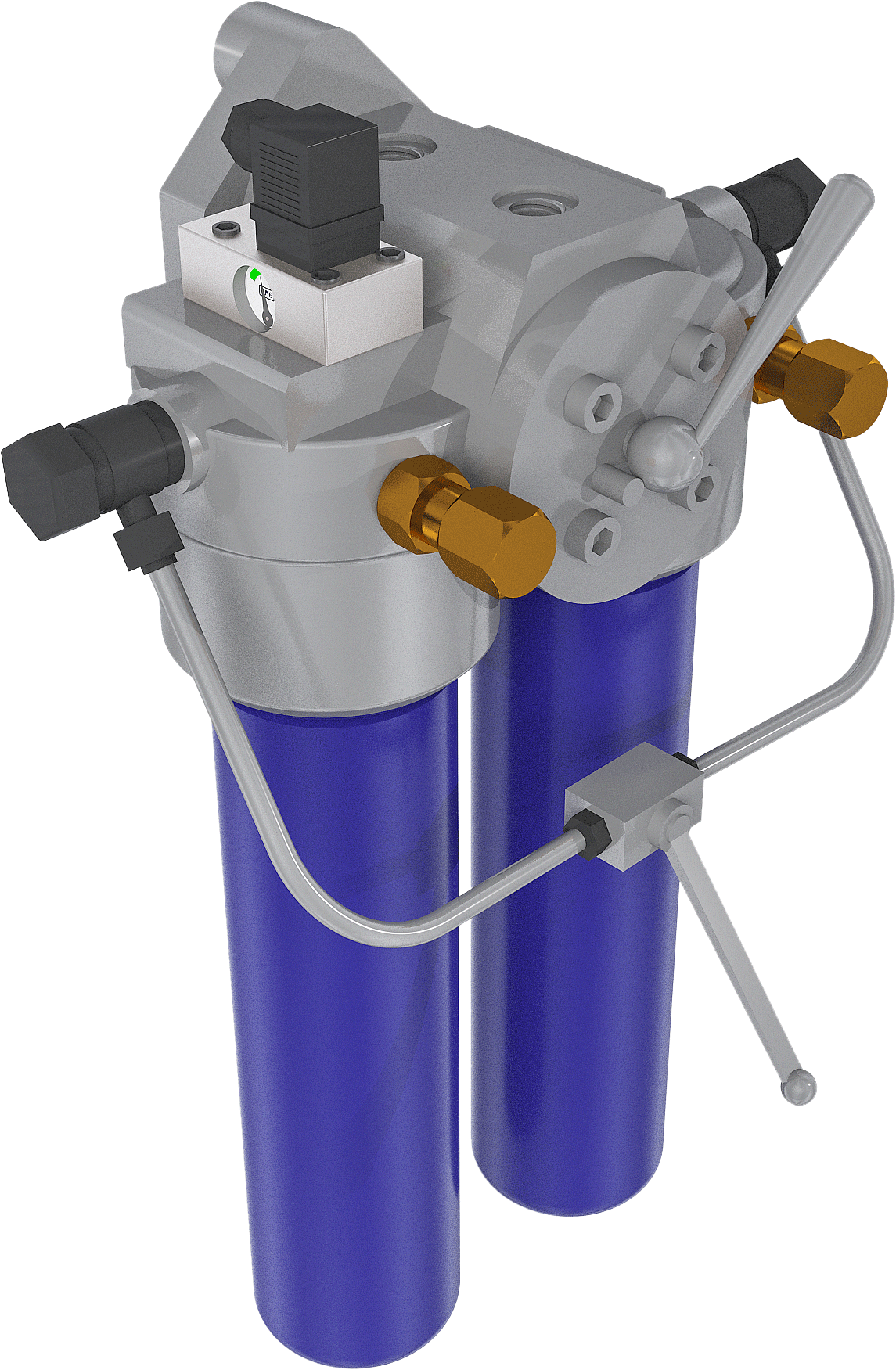

High Pressure :

Design : Duplex
✓ Type : 250_450 LD/LDN
✓ Pressure : 250 / 450 Bar
✓ Flow handling capacity : upto 1450lpm
✓ Connection : Upto 2"



Low Pressure
Easy Service :

Design : Duplex Easy service design
✓ Type : 40 FLD/FLDN
✓ Pressure : 40 Bar
✓ Flow handling capacity : upto 2700lpm
✓ Connection : Upto DN100

Low Pressure
Fabricated - Ball Valve :

Design : Duplex Fabricated with 3-Way Ball C/O Valve
✓ Type : 16_60 DK
✓ Pressure : 16 / 40 / 45 / 60 Bar
style="font-size: 17px;"✓ Flow handling capacity : upto 2950lpm
✓ Connection : Upto 6” ANSI

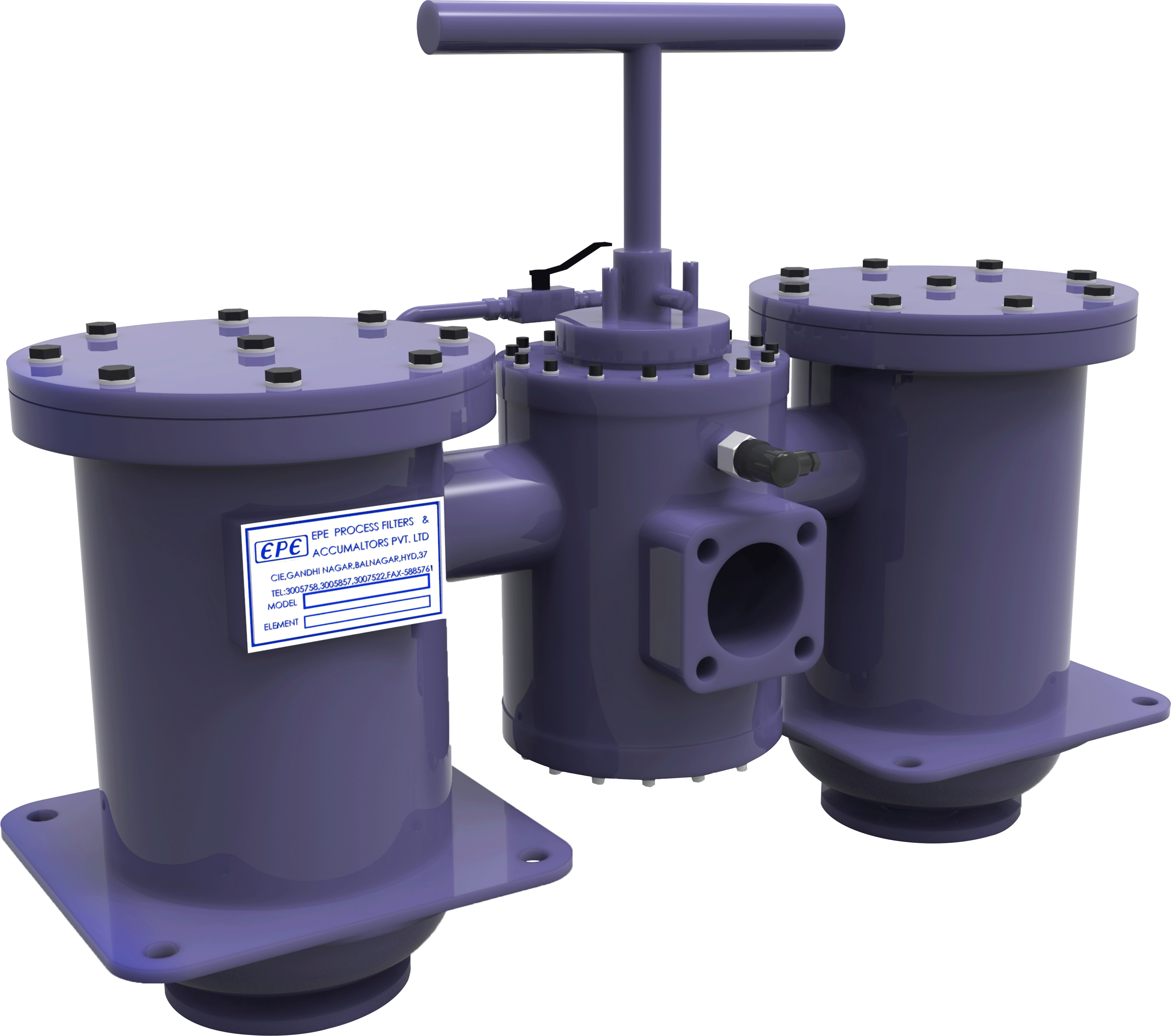

Low Pressure
Large Volume:

Design : Duplex Fabricated with Butterfly C/O Valve
✓ Type : 10_16 FLD
✓ Pressure : 10 / 16 Bar
✓ Flow handling capacity : upto 13500lpm
✓ Connection : Upto DN300




Return Line

Return Line : Tank-top Mounted Return Line Filters

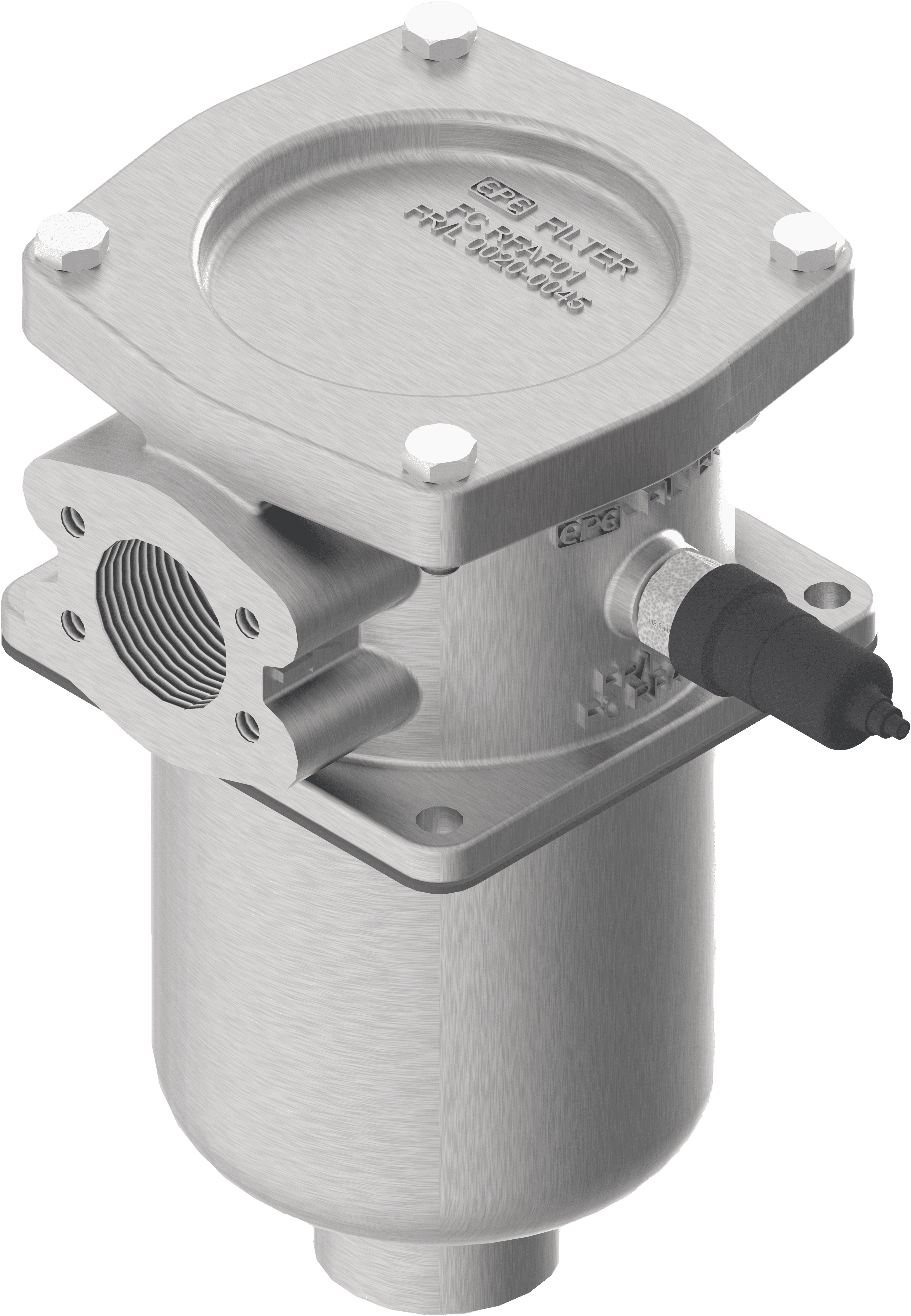

Simplex Tank Top :

Design : Tank top mounted
✓ Type : 10 FRE
✓ Pressure : 10 Bar
✓ Flow handling capacity : upto 180lpm
✓ Connection : 1-1/2” BSP



Simplex Return Line/Inline

Design: Tank top mounted Return Line/Inline
✓ Type: 16 FR/L – FR/LN
✓ Pressure: 16 Bar
✓ Flow handling capacity: upto 2700lpm
✓ Connections : Upto SAE 4”"



Simplex Low
Pressure Fabricated:

Design : Tank top mounting Fabricated
✓ Type : 10_16 RL
✓ Pressure : 10 / 16 Bar
✓ Flow handling capacity : upto 2700lpm
✓ Connection : Upto DN100

Duplex Tank Top :

Design : Tank top Mounted Duplex
✓ Type : 10 FRD
✓ Pressure : 10 Bar
✓ Flow handling capacity : upto 180lpm
✓ Connection : Upto 1-1/2”

Duplex Low Pressure Fabricated :

Design : Duplex Tank top mounting Fabricated
✓ Type : 10_16 DR
✓ Pressure : 10 / 16 Bar
✓ Pressure : 10 / 16 Bar
✓ Connection : Upto DN100

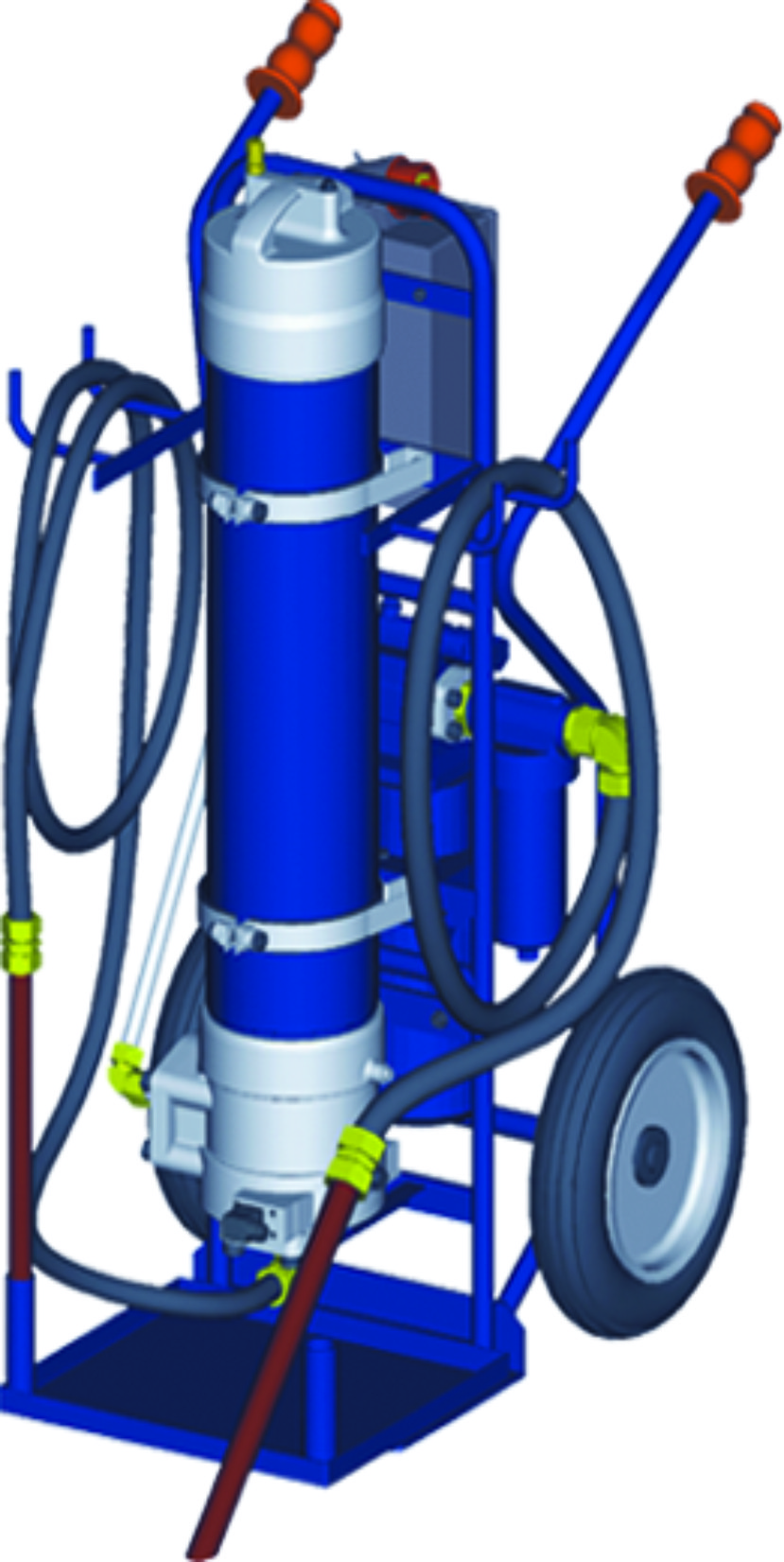

Offline Filtration System:

Design : Mobile /
Offline Filtration System:

Type : 15_170 NFF2
✓ Flow : 15 / 170 lpm
✓ Electric Power : 1HP to 7.5HP
✓ Connection : Upto 2"

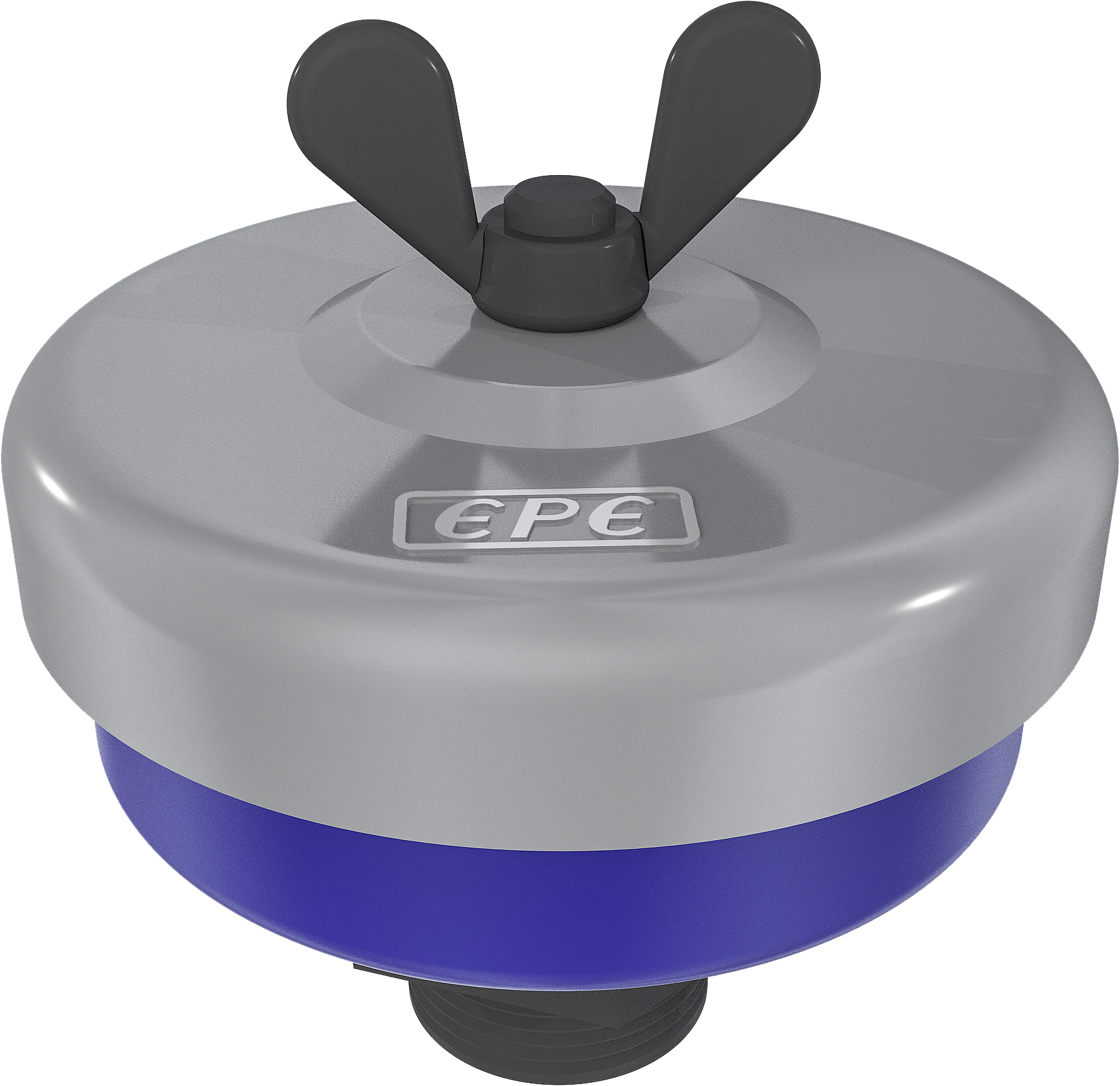

Breather TLF :

Breather TLF :

Design : Breather for Tank top mounting
✓ Type : TLF - I / TLF - II / TLF - III
✓ Air Flow handling capacity : upto 5000 m3/hr
✓Connection : Upto G3 / DN125




Filter Element:

Filter Element : Star Pleated Filter Elements, Design : Out to In (Standard)

Filter Element :

Design : Star Pleated-Reusable/Disposable
✓ Type : H-XL, H-XP, G, VS, AS
✓ Media : Glass Fibre, Paper, Wire Mesh, Non-Woven, Water-Absorbing
✓ Filtration grade : 1μ(Abs) to 1000μ(Nom)
