Standard:

✓ Bladder Accumulator Standard

✓ Type : AS/ASHF/ASWP/ASWD

✓ Capacity : 0.2 to 130 Ltrs.

✓ Pressure : 10 / 690 Bar.

ASME Design AA :

✓ Bladder Accumulator ASME Design

✓ Type : AA

✓ Capacity : 1/6 to 15 Gallons

✓ Pressure : 1000 / 15000 PSI

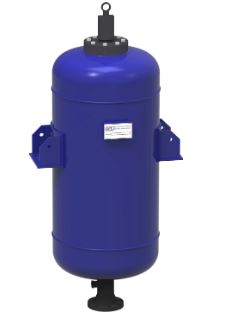

Large Volume :

✓ Bladder Accumulator Large Volume

✓ Type : ASLV/ASLV HF

✓ Capacity : 100 to 575 Ltrs.

✓ Pressure : 16 / 35 Bar

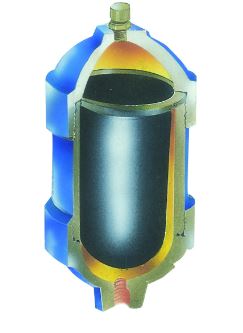

Membrane

Membrane : Membrane type Accumulators, Welded / Non-repairable design

Rechargable :

Membrane Accumulator Rechargeable

✓ Type : AMW-M

✓ Capacity : 0.07 to 5 Ltrs.

✓ Pressure : 40 / 350 Bar

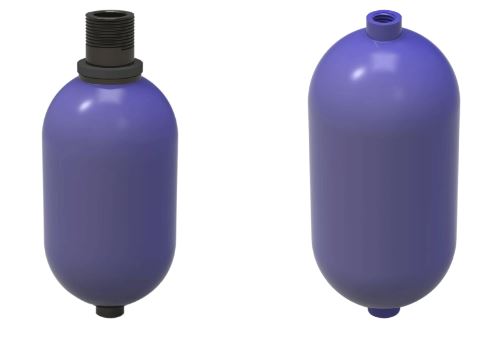

Sealed
(Non Rechargable)

Membrane Accumulator Sealed

✓ Type : AMW-P

✓ Capacity : 0.07 to 1.4 Ltrs

✓ Pressure : Upto 250 Bar

Screwed (Repairable) :

Membrane Accumulator Screwed / Repairable

✓ Type : AM

✓ Capacity : 0.1 to 2.5 Ltrs.

✓ Pressure : Upto 210 Bar

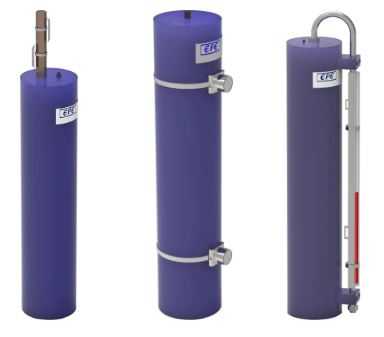

Piston

Piston : Piston type Accumulators, Repairable & Non-repairable designs

Standard Repairable:

Piston Accumulator Repairable

✓ Type : AP

✓ Capacity : 0.025 to 1000 Ltrs.

✓ Piston diameters : 50mm to 490mm

✓ Pressure : Upto 800 Bar

Crimped Non-Repairable :

Piston Accumulator Non-repairable

✓ Type : APC

✓ Capacity : 0.1 to 8 Ltrs.

✓ Piston diameters : 40, 50, 80, 100mm (Others on request)

✓ Pressure : Upto 250 Bar

Accessories

Safety Blocks, Charging Kits, Back up Bottles

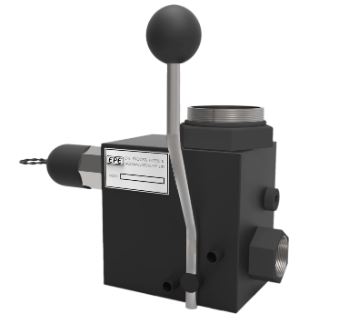

Safety Block :

Accumulator Safety Block Liquid side

✓ Type : B

✓ Size : 10 to 32

✓ Pressure : Upto 420 Bar

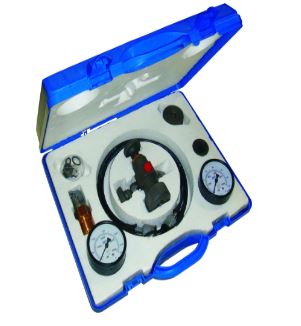

Charging Kit :

Accumulator Charging Kit Standard (for Bladder & Piston Type)

✓Type : PC

✓ Pressure : Upto 420 Bar

Charging Kit –
High Pressure :

Accumulator Charging Kit – High Pressure (for Bladder & Piston Type)

✓ Type : PC

✓ Pressure: 690 Bar

✓ Accumulator Connections : 5/8” UNF, 1/4" BSP

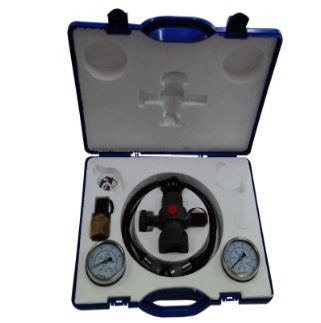

Charging Kit :

Accumulator Charging Kit (for Welded Membrane Type)

✓ TType : PCM

✓ Pressure : Upto 420 Bar

Backup Bottles :

Nitrogen Back up Bottles

✓ Type : BA/BB/BD

✓Capacity : 3 to 75 Ltrs.

✓ Pressure : Upto 360 Bar

Charging Block :

for Accumulator Back up Bottles

✓ Type : BC

✓ Size : 25

✓ Pressure : Upto 400 Bar

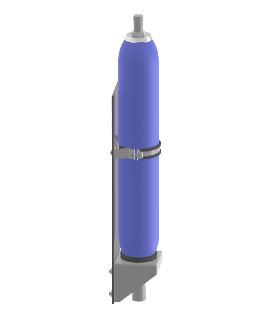

Mounting Accessories :

Brackets and Clamp Type Accumulator Mounting

Piston Accumulator –
Limit Switching Device :

Piston Accumulator – Limit Switching Device

Type : ES

✓ Stroke : 100mm

✓ Switch type : NO | NC | Bistable
